eSecuRD-UFO

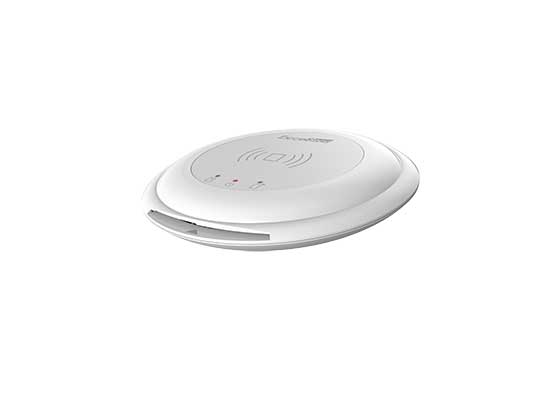

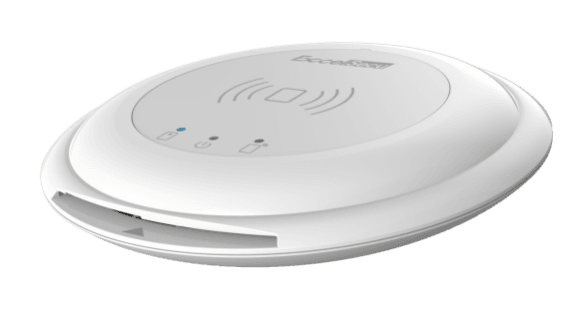

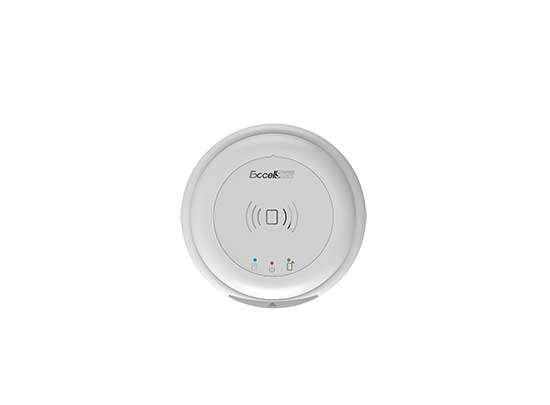

eSecuRD-UFO Dual Interface Reader supports all contact/contactless cards that comply with ISO 7816 and ISO 14443 standards with the advantage of integrating both contact and contactless applications on a single device.It can be used in E-government, banking and payment, e-medical care, network security, access control, e-wallet and membership benefits, public transportation, etc.

Contact Us

Product Features

USB 2.0 full speed interface

CCID compliance

Contactless smart card reader

Built-in antenna for contactless tag access with card reading distance of greater than 40mm (depending on tag type)

Supports ISO 14443 Type A and Type B cards

Built-in anti-collision mechanism which allows access to only 1 contactless tag at any time

Contact smart card reader

Supports ISO 7816 CLASS A, B, C (5V, 3V, 1.8V)

Short circuit protection

Product Specs
Widely used in various authentication security fields
Product

eSecuRD-UFO

Dimension

49.8x26x8.25mm

Power Supply

USB Power Supply (5V)+ Rechargeable battery (Optional)

Current

≤200mA

Sheathing Material

PC

Indicator Light

3 LED indicators (Power/ Contact / Contactless)

Connectivity

Micro USB

Communication Rate with Host

USB 2.0 FS (12Mbps)

Drive Protocol

PS/SC

Supported API

PC/SC-API

Supported OS

WINDOWS 7/8/10/Server-2016/2012/2008/2003, Mac OS above 8

Contact Standard

ISO 7816 CLASS A/B/C, T=0

Contactless Standard

ISO 14443 Type A/B

Durability

Cards can be inserted and pulled out 100,000 times

C4/C8

-

Communication Frequency

13.56MHz

Communication Range

≥4cm

Operating Temperature

0 ~+60℃

Storage Temperature

-10 ~+70℃

Operating Humidity

10%-90% (non-condensing)

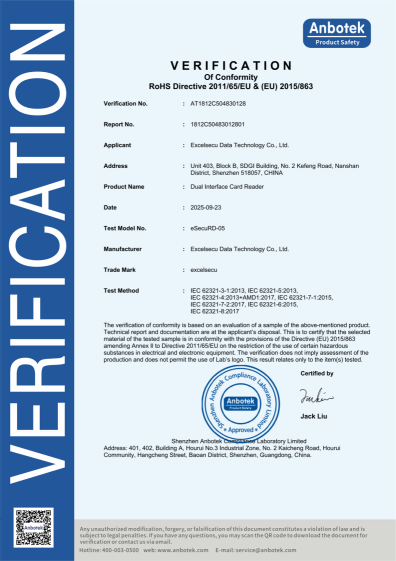

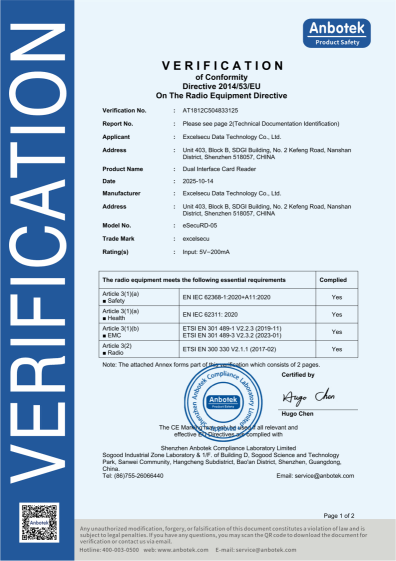

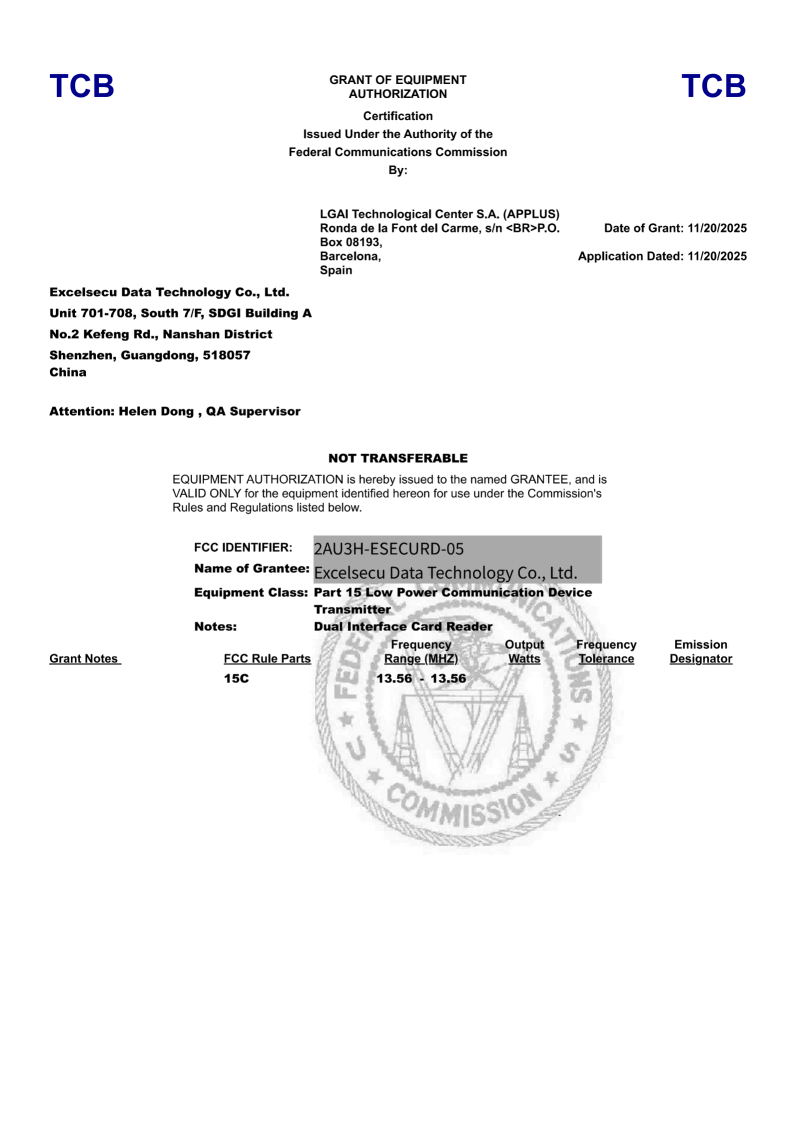

Certification

FCC, CE, RoHS, WEEE
