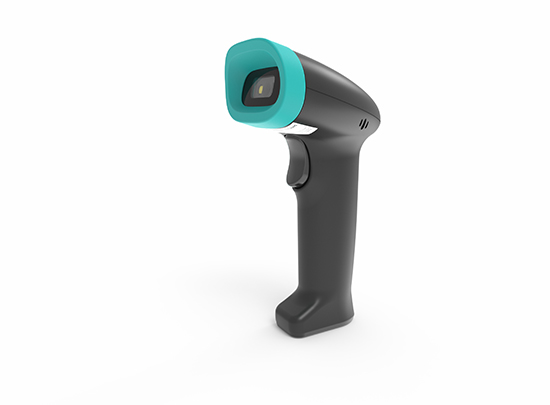

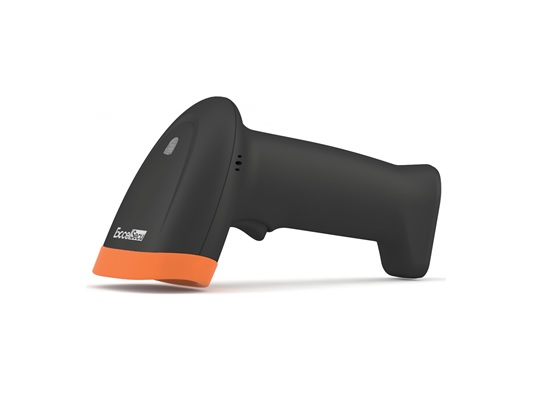

Wireless 1D 2D Barcode Scanner

With powerful image processing and high-efficiency transmission technologies, the ESCS-W30 handheld image Wireless 1D 2D Barcode Scanner (QR code scanner) can read a variety of 1D and 2D codes in wireless (2.4 GHz and Bluetooth) and wired (USB cable) modes. It may be utilized in low-light situations because it has auxiliary lighting. With a handheld device, a barcode may be easily read from any angle quickly and efficiently.

It supports barcodes on paper, LCD screens, mobile screens, as well as special barcodes that can withstand damage, distortion, etc.

Wireless Barcode Scannner Product Features

Ergonomic design, easy to use.

High-performance scan reader, easily read 1D and 2D barcodes (QR codes) on paper or LED screen.

Support multiple communication method including USB and virtual serial port

Stable and durable, applying to flexible workplaces

USB plug and play, no driver installation needed

Compatible with Windows, Android and Linux

Wireless Barcode Scanner Product Specs

In numerous IoT payment applications, wireless barcode scanner (cordless scanners) are frequently employed.

Model	ESCS-U30
Dimension	1579572.5mm
Material	PC+ABS
Working Voltage	DC 5V ± 0.25V
Working Current	<260mA
Connection	USB
Indication	Buzzer & LED
Camera	640*480pixels, COMS, 30fps
Canning Angle	Rotor angle 360°, inclination±60°, declination±60°
Depth of Field	EAN13：35~155mm(13mil)
	Code128：60~275mm(20mil)
	Code39：30~95mm(5mil)
	QR Code：20~170mm(15mil)
Decoding Capability	1D Code: Code128、Code39、Code93、EAN13、EAN8、UPC_A、 UPC_E0、UPC_E1、ISBN13、Codabar （Can set open or not：Interleaved2of5、Matrix2of5、 Industrial25、Code11、RSS-14、RSS Limited、RSS Expanded、 MSI Plessey、Standard 25、Plessey、ChinaPost25、 GS1 Composite）
Decoding Capability	2D Code: QR Code、PDF417、Data Matrix （Can set open or not：Han Xin、Micro PDF417、 Micro QRCode、MaxiCode、Aztec、Code16K）
Environmental Parameter	Working Temperature: -10℃~50℃
	Storage Temperature: -20℃~60℃
	Working Humidity: 5%RH~95%RH(Non-condensing)
	Electrostatic protection: ±15kV (air discharge), ±8kV (direct discharge)
	Drop Test: 1.2m
Certificate	CE, FCC, RoHS, WEEE
