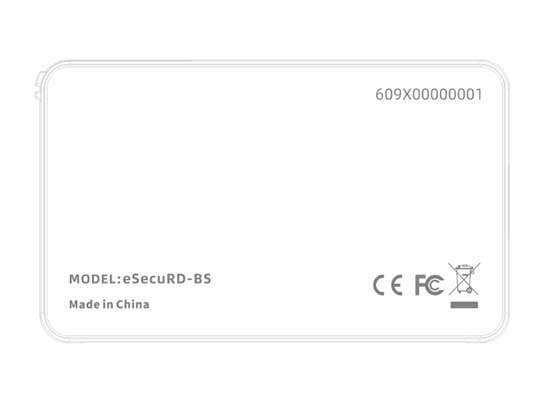

eSecuRD-BS

eSecuRD-BS Dual Interface Reader supports both ISO 7816 class A, B, C cards and ISO 14443 Type A and Type B cards. It is suitable for application systems with IC card operation and high-security requirements such as finance, social security, telecommunications, electronic payment, network security, e-commerce, identity authentication, and e-government.

Product Features

USB 2.0 full speed interface

PC/SC and CCID compatible

Supports ISO 7816 CLASS A, B, C cards and ISO 14443 Type A and Type B cards

The built-in anti-collision mechanism allows access to only 1 contactless tag at any time

Short circuit protection

Product Specs

Widely used in various authentication security fields

Product	eSecuRD-BS
Dimension	49.8x26x8.25mm
Power Supply	USB Power Supply (5V)
Current	<200mA
Sheathing Material	PC
Indicator Light	2 LED indicators (Red: Power/Blue: Data Communication)
Connectivity	USB A type + Micro USB
Communication Rate with Host	USB 2.0 FS (12Mbps)
Drive Protocol	CCID, PC/SC
Supported OS	WINDOWS 7/8/10/Server-2016/2012/2008/2003, Mac OS above 8
Card Reader Standard	ISO 7816 CLASS A/B/C, T=0/ ISO 14443 Type A/B
Short circuit protection	Supported
Durability	Cards can be inserted and pulled out 100,000 times
Operating Temperature	0 ~+60℃
Storage Temperature	-10 ~+70℃
Operating Humidity	10%-90% (non-condensing)
Certification	FCC, CE, ROHS, WEEE
