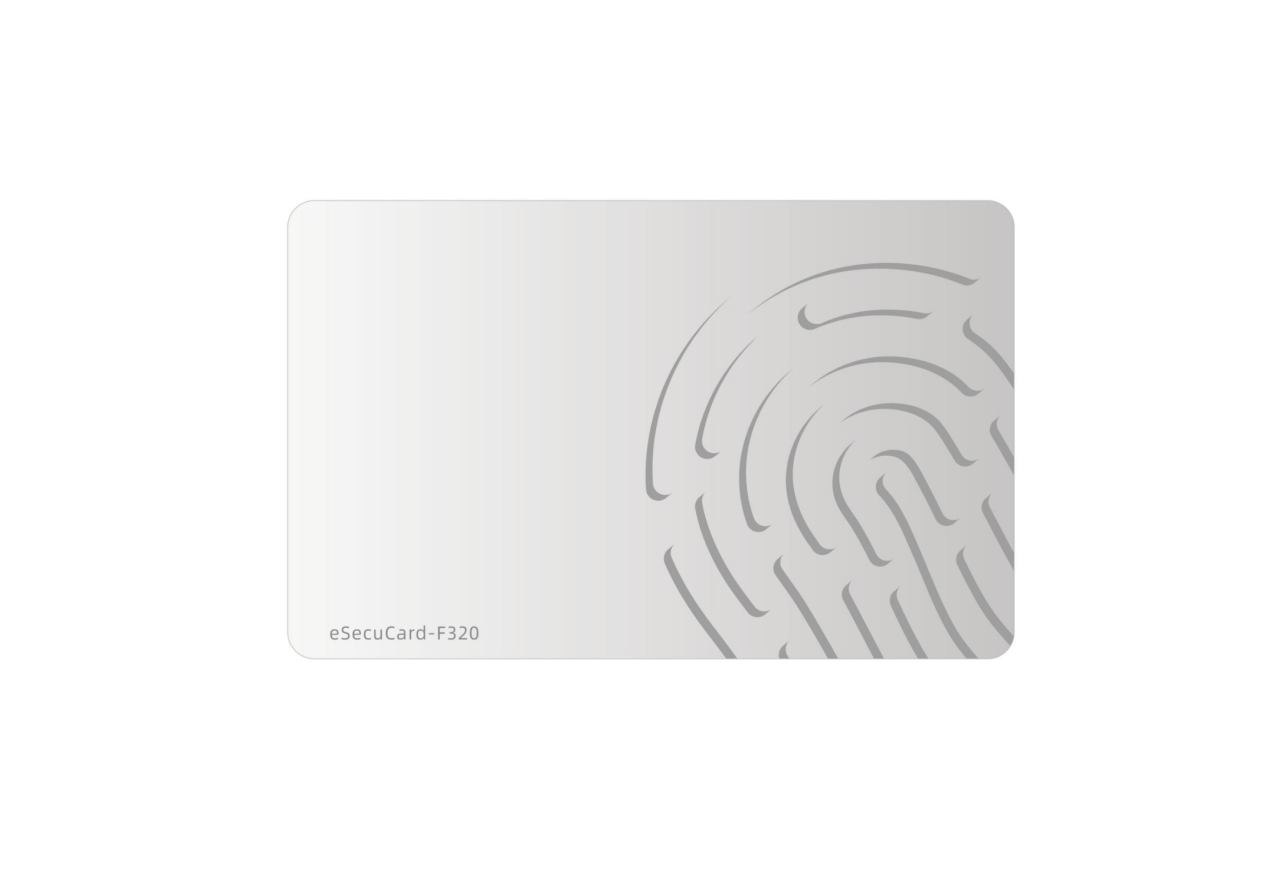

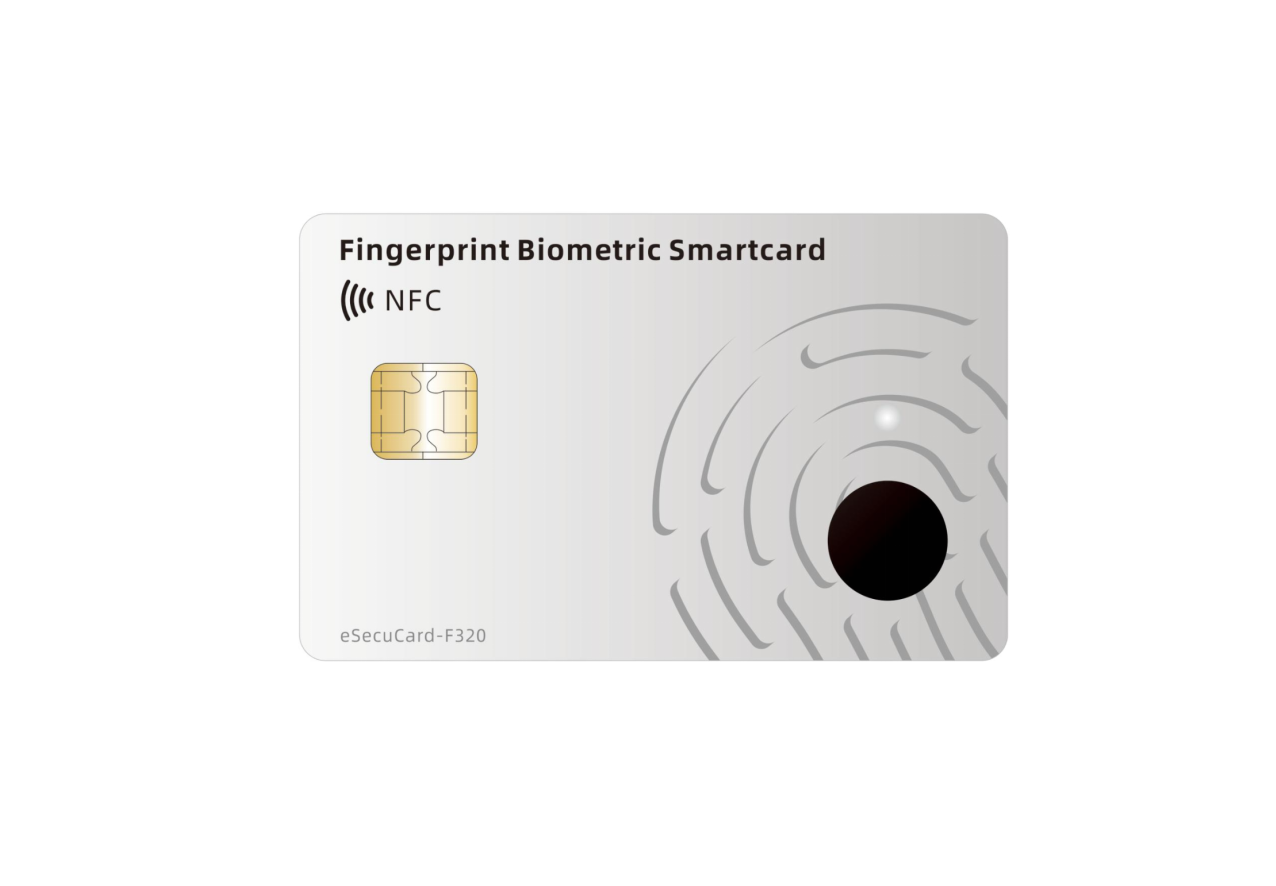

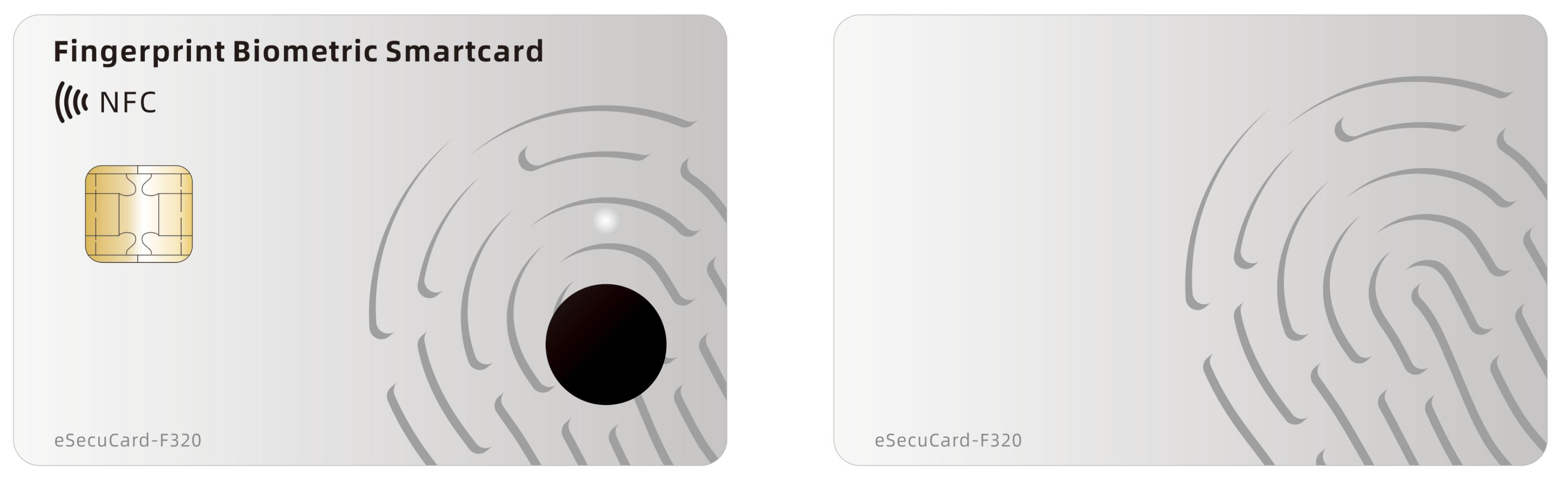

eSecuCard-F320

eSecuCard-F320 is the biometric application in the smart card field which integrates biometric authentication into an ISO standard dual interface smart card. The card comes with a fingerprint sensor, a smart card chip and a fingerprint module. The biometric uniqueness of the fingerprint verification greatly enhances the security of the cardholder and convenience in daily usage. eSecuCard-F320 can be used in identity verification, access control and membership card scenarios.

Product Features

Biometric level security together with ease of use and portability.

Fingerprint verification instead of conventional password verification.

Fingerprint card comes with enrollment, verification and delete function as well as fingerprint module.

LED light indicating operation status.

Support dual interfaces, NFC and ISO7816 Contact.

Product Specs

Widely used in various authentication security fields

Card Size	Dimension	85.60 × 53.98 × 1 (mm)
FP Sensor	Sensor Resolution	508 dpi
	Fingerprint Verification Time	< 1sec.
	False Accept Rate	< 0.001%
	False Reject Rate	< 1%
	Sensor area	8 × 8 (mm)
	Sensor Pixel	160 × 160 pixel
	Sensor Extended Humidity Range	20% RH ~ 85% RH (Non condensing)
FP Processing Chip	Security MCU
Smart Card	Chip	CC EAL6+ Supports downloading user-developed applets
	ISO 7816 T=0	√
	ISO 14443 Type A T=CL	√
Standard Compliance	Java Card VM 3.0.4	√
Standard Compliance	Global Platform 2.2.1	√
Memory	User NVM	170K
Memory	User RAM	2.5K
Algorithm	Algorithm	[MessageDigest] MD5, SHA1, SHA256, SHA384, SHA512 [Symmetric] DES, 3DES, AES [Asymmetric] RSA512/1024/2048 ECC 256/384/521
