Wired 1D 2D Barcode Scanner

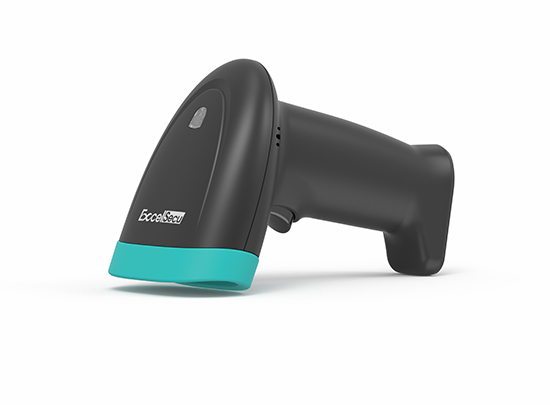

ESCS-U30 is a handheld image 2D barcode scanner, with advanced image processing technology and high efficient transmission technology, the device can easily read a variety of 1D and 2D code. Equipped with auxiliary lighting, it can be used even without lighting conditions. Handheld design is easy to read barcode in any direction with fast scanning speed and high efficiency
It supports barcodes on paper, LCD screen or mobile screen, and including damage, distortion, etc. special barcode.

Contact Us

Product Features

Ergonomic design, easy to use.

High-performance scan reader, easily read 1D and 2D barcodes on paper or LED screen.

Support multiple communication method including USB and virtual serial port

Stable and durable, applying to flexible workplaces

USB plug and play, no driver installation needed

Compatible with Windows, Android and Linux

Product Specs
Widely used in various IoT payment fields
ModelESCS-U30
Dimension157*95*72.5mm
MaterialPC+ABS
Working VoltageDC 5V ± 0.25V
Working Current <260mA
ConnectionUSB
IndicationBuzzer & LED
Camera640*480pixels, COMS, 30fps
Canning AngleRotor angle 360°, inclination±60°, declination±60°
Depth of FieldEAN13:35~155mm(13mil)
Code128:60~275mm(20mil)
Code39:30~95mm(5mil)
QR Code:20~170mm(15mil)
Decoding Capability1D Code:
Code128、Code39、Code93、EAN13、EAN8、UPC_A、
UPC_E0、UPC_E1、ISBN13、Codabar
(Can set open or not:Interleaved2of5、Matrix2of5、
Industrial25、Code11、RSS-14、RSS Limited、RSS Expanded、
MSI Plessey、Standard 25、Plessey、ChinaPost25、
GS1 Composite)
2D Code:
QR Code、PDF417、Data Matrix
(Can set open or not:Han Xin、Micro PDF417、
Micro QRCode、MaxiCode、Aztec、Code16K)
Environmental
Parameter
Working Temperature: -10℃~50℃
Storage Temperature: -20℃~60℃
Working Humidity: 5%RH~95%RH(Non-condensing)
Electrostatic protection: ±15kV (air discharge),
±8kV (direct discharge)
Drop Test: 1.2m
CertificateCE, FCC, RoHS, WEEE
