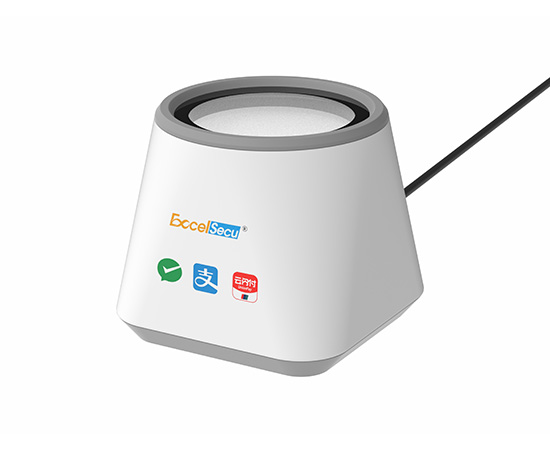

Desktop Code Scanner

ESCS-QR80 is an image CMOS desktop code scanner, which supports Windows and Android operating systems and can connect with cash registers, computers and other devices for scan and payment scenarios. The product has a large scan window, supporting common 1D barcode and 2D barcode scanning.
QR80 desktop code scanner is suitable for small, medium and micro businesses, super retail and other places where 1D and 2D barcode scanning is required.

Product Features

Ergonomic design, easy to use.

High-performance scan reader, easily read 1D and 2D barcodes on paper or LED screen.

Support multiple communication method including USB and virtual serial port.

Stable and durable, applying to flexible workplaces

USB plug and play, no driver installation needed.

Compatible with Windows, Android and Linux

Bluetooth and 2.4Ghz wireless are optional for mobile usage.

Product Specs

Widely used in various IoT payment fields

Product information	Model	ESCS-QR80
	Name	Desktop code scanner
	Dimension	9090100mm
Performance parameter	Decoding mode	CMOS image decoding
	Pixel	640 * 480 pixel
	Lighting	White LED fill light
	Decoding Capability	2D	QR Code，PDF 417，Data Matrix
		1D	Code128，Code39，Code93，EAN-8，EAN-13，UPC-A，UPC-E，ITF-14，ITF-25，EAN-128
	Accuracy of reading	≥10mil
	Barcode sensitivity	Rotation(tilt)	360° @ 0° Pitch and 0° Skew
		Deflection(skew)	±45° @ 0° Roll and 0° Pitch
		Incline (pitch)	±45° @ 0° Roll and 0° Skew
	Window for reading	Φ90mm
	Depth of field	0mm-300mm
	Read speed	50ms（average），Continuous scanning supporting
Mechanical/electrical characteristics	communication interface	USB Type-A
	Indicator	Voice prompt (decode successfully). Red, green, blue and white leds are used to indicate different payment channels

	Voltage	DC 5V
	Current	Maximum current	<250 mA
		Working current	<150 mA
		Standby current	<100 mA
Environmental Parameter	Operating temperature	-20℃～50℃
	Storage temperature	-30℃～60℃
	Relative humidity	5%～95%（No condensation）
	Illuminance	0～100000lux
Accessory	USB Cable	1.5m
Certificate	Certificate	FCC,CE,RoHS,WEEE
