eSecuCard-N291

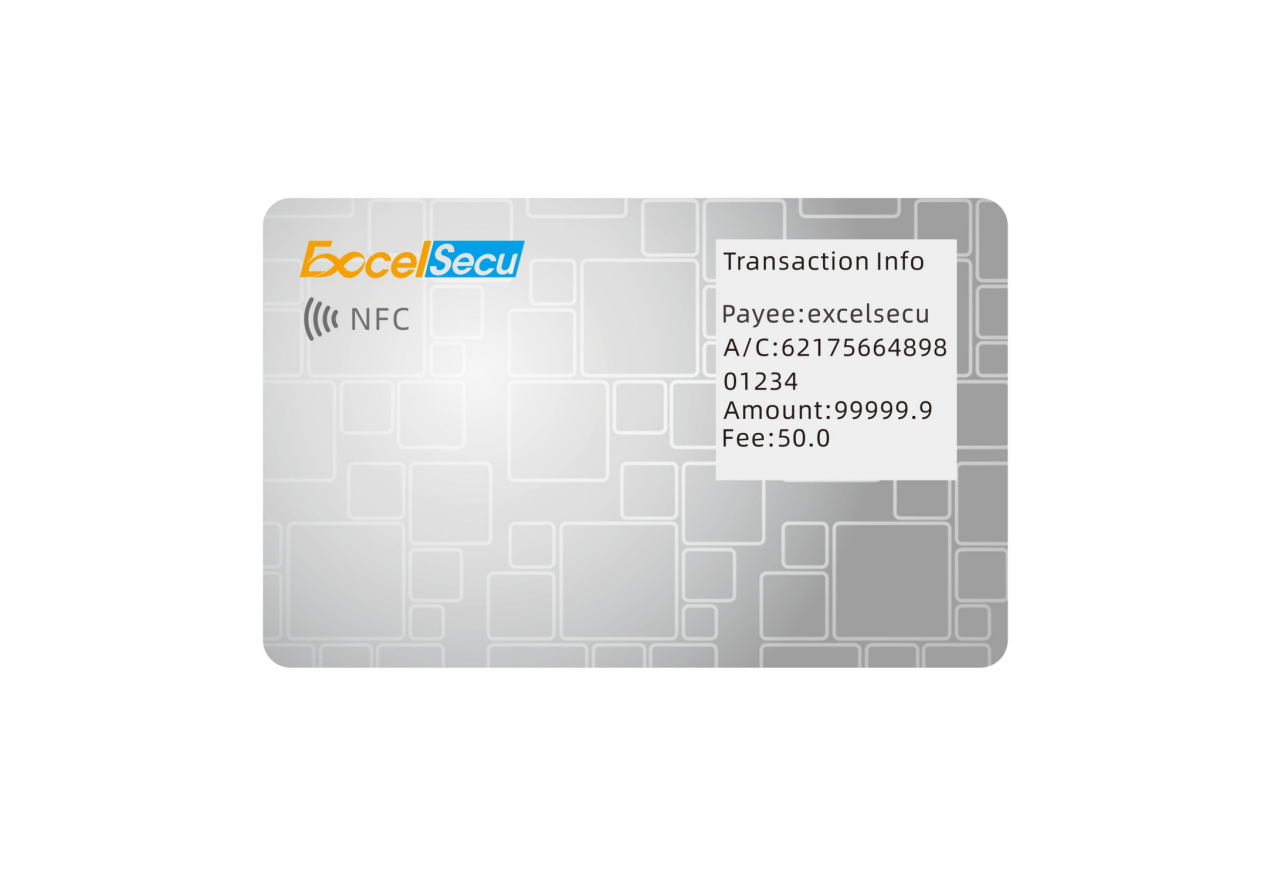

eSecuCard-N291 is a smart card with EPD screen. It requires no battery powered and powered by contactless readers and NFC enabled smartphones. The model provides a Java platform for users to develop their own applets which can update the content of the EPD screen. It can be applied in various areas, including digital wallet, membership card, employee card, electronic tickets, and etc.

Product Features

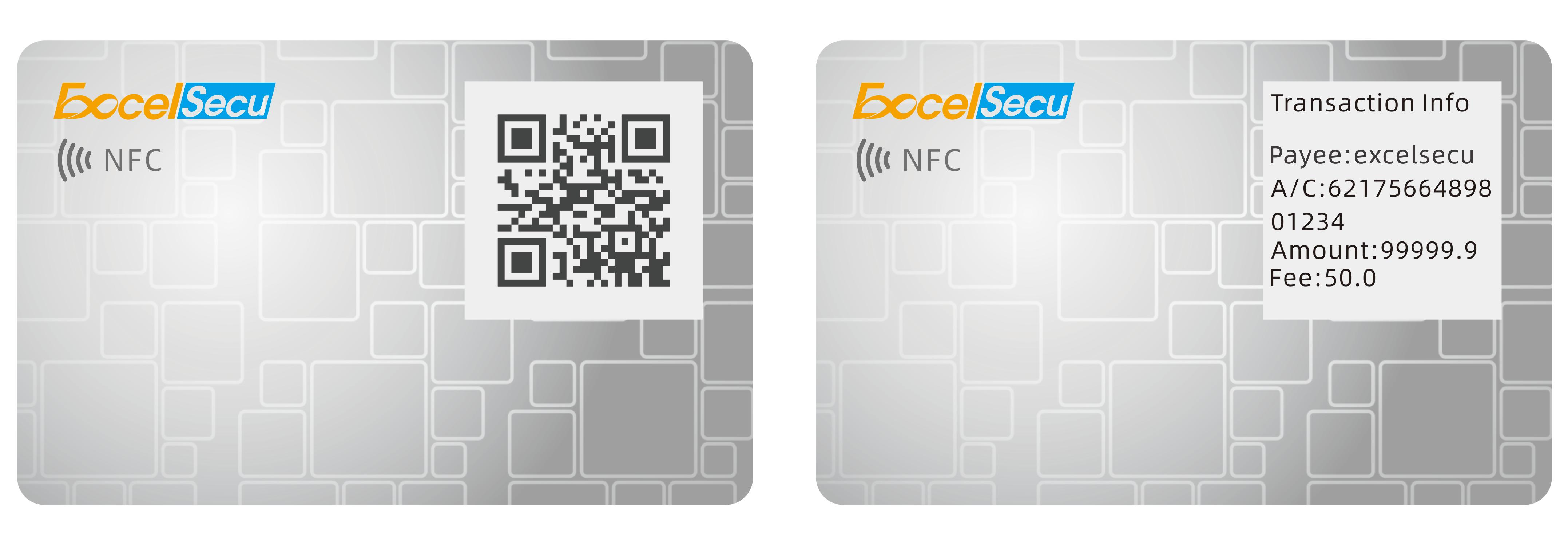

Batteryless EPD screen for QR code.

Embedded with CC EAL6+ Secure element.

Built-in EPD screen is directly connected to the SE.

High development potential with Java platform.

Support NFC interfaces.

Product Specs

Widely used in various authentication security fields

Card Size	Dimension	85.60 × 53.98 × 2.3 (mm)
Screen	EPD	200*200 pixel(Dot matrix) Size:1.54 Inch，Dpi:184
Smart Card	Chip	CC EAL6+
	ISO 7816 T=0	-
	ISO 14443 Type A T=CL	√
Java Platform	Java Card VM 3.0.4	√
Java Platform	Global Platform 2.2.1	√
Memory	User NVM	170K
Memory	User RAM	2.5K
Algorithm	Algorithm	Java Card API Standard Algorithm(defined in Java Card VM 3.0.4): [MessageDigest] MD5, SHA1, SHA256, SHA384, SHA512 [Symmetric] DES, 3DES, TDES,AES128 ,AES192,AES256 [Asymmetric] RSA1024, RSA2048 ECDSA(SECP256K1, SECP256R1, SECP384R1,SECP521R1) ECDH(SECP256K1,SECP256R1,SECP384R1,SECP521R1) Self-defined algorithm: PBKDF2(HMAC_SHA512) SHA3-224, SHA3-256, SHA3-384, SHA3-512 KECCAK 256, RIPEMD 160, RIPEMD 256 X25519, ED25519
