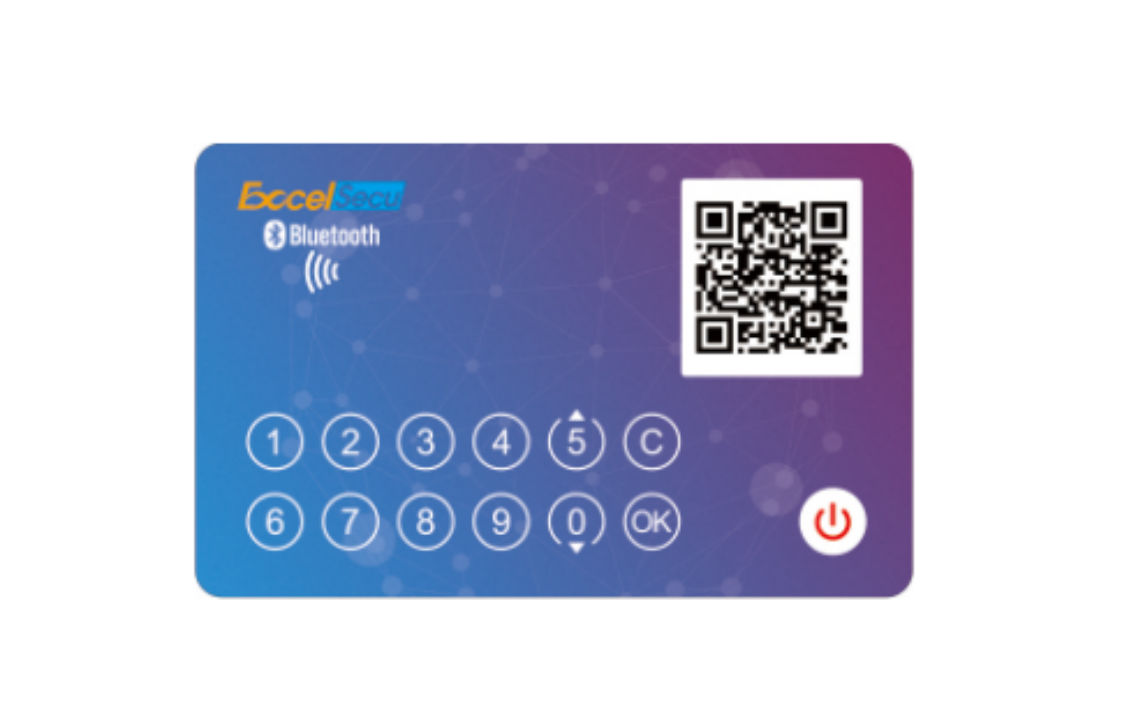

eSecuCard-S510

eSecuCard-S510 is a super smart card with multiple functions. Embedded with Bluetooth chip,EPD screen, touch keypad and one-time-password secure chip, this super smart card provides a more powerful platform for users to develop various kinds of applets. It can be applied in various areas, including digital wallet, membership card, password memory, employee card, electronic ticket card, multi-card integration and etc.

Product Features

Compatible with Java Card v3.0.4 and Global Platform v2.2.1.

ISO 14443 and Bluetooth communication interface

EPD screen and low energy consumption

Rechargeable battery

Product Specs

Widely used in various authentication security fields

Card Size	Dimension	85.60 × 53.98 × 2.3 (mm)
Screen	EPD	1.22", 176×192 pixel
Keypad	Capacitive +Mechanical	12 Capacitive Buttons + 1 Mechanical Button
Battery	Rechargeable	√
Battery Charge	Contactless	NFC & QI
Smart Card	Chip	CC EAL6+
Smart Card	ISO 14443 Type A T=CL	√
Java Platform	Java Card VM 3.0.4	√
Java Platform	Global Platform 2.2.1	√
Memory	User NVM	170K
Memory	User RAM	2.5K
Algorithm	Algorithm	Java Card API Standard Algorithm(defined in Java Card VM 3.0.4): [MessageDigest] MD5, SHA1, SHA256, SHA384, SHA512 [Symmetric] DES, 3DES, TDES,AES128 ,AES192,AES256 [Asymmetric] RSA1024, RSA2048 ECDSA(SECP256K1, SECP256R1, SECP384R1,SECP521R1) ECDH(SECP256K1,SECP256R1,SECP384R1,SECP521R1) Self-defined algorithm: PBKDF2(HMAC_SHA512) SHA3-224, SHA3-256, SHA3-384, SHA3-512 KECCAK 256, RIPEMD 160, RIPEMD 256 X25519, ED25519
Bluetooth	BLE API	√
One Time Password	OATH TOTP/HOTP	*
	RTC	√
	Algorithm	*
	Seed personalization	*
√ available *optional
