Cloud Speaker(Payment Sound Box)

eSecuLS-LS08(MF90) cloud speaker (Payment Sound Box) is as a merchant to receive auxiliary tools. After the billing system is bound to the cloud speaker, and the merchant's payment situation is broadcast in real time, which can avoid the situation of escaping or missing the bill, and solve the problem that the payee's mobile phone must be present. It is suitable for frequent transactions, small transactions place,such as small shops, shopping malls, supermarkets, night markets, vegetable markets and other businesses.

Product Features

eSecuLS-LS08(MF90) supports :

Receiving voice texts on the server and broadcasting TTS voices:

Playing fixed audio files(MP3 format)

OTA online upgrade

Rechargeable battery for power supply.

4G/WIFI network communication (optional)

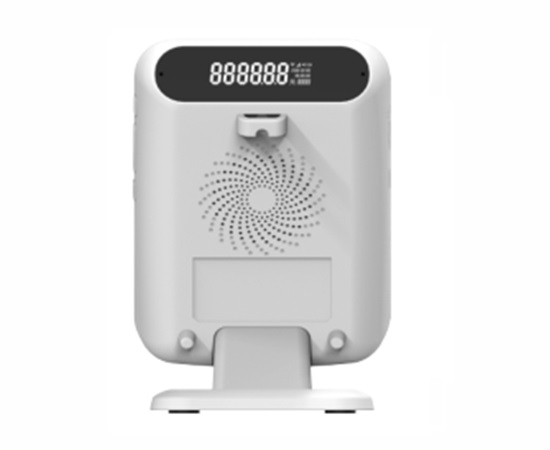

Display of digital amounts(optional)

eSecuLS-LS08(MF90) could customize:

Code scanning(scan payment code with camera),OTG,Bluetooth,main screen display (display collection QR code/Barcode ),NFC reading and writing,LBS(Location Based Services)

Product Specs

Widely used in various IoT payment fields

Model	eSecuLS-LS08(MF90)
Name	Cloud Speaker Terminal
Size	Main body：1369733 mm Complete machine：141.69788 mm
Power interface	USB Type-C
Loudspeaker	3W, 6-level volume adjustment
Power input	5V ﹍ 1A
Battery	Built-in rechargeable lithium battery 2000mAh（Customizable）
4G	【Optional】
WIFI	【Optional】 2.4GHz
Second screen	【Optional】 LCD black-and-white screen 58*15mm
Camera	【Customizable】 Image type CMOS 640 * 480 pixel
Main screen	【Customizable】 TFT color screen 49.9637.62mm , Resolution ratio 320240
Bluetooth	【Customizable】 BT/BLE
OTG	【Customizable】 USB2.0 full speed
NFC	【Customizable】 ISO14443
Working temperature	-10℃～55℃
Storage temperature	-20℃～70℃
Relative humidity	5%～95%（Non-condensing）
Illuminance	0～100000lux
